Single Unicoils

path ok

Single Unicoils

Primary Hose applications are intended as a basic guide only.Unicoil products are compatible with oil, air, water and fuel hoses. Additional applications are possible, refer to hose Min and Max O.D’s to match Unicoil with other hoses not listed here.


Part No. Primary Hose Applications * Unicoil I.D. HOSE
Min O.D.
HOSE
Max O.D.
UC14091 6.3mm (1/4") I.D. Fuel hose,Heater hose 13mm 11mm 13mm
UC51691 7.9mm (5/16") I.D. Fuel Heater & trans oil hoses 16mm 14mm 16mm
UC38091 9.5mm (3/8") I.D. Heater hose,trans oil hose 18mm 16mm 18mm
UC12091 13mm (1/2") I.D. Heater hose 21mm 19mm 21mm
UC58091 16mm (5/8") I.D. Heater hose 24mm 22mm 24mm
UC34091 19mm (3/4") I.D. Heater hose 28mm 26mm 28mm
UC10091 25.4mm (1") I.D. Heater hose 36mm 34mm 36mm
Hose matching guide:A snug fit with approximately 0.5-1mm clearance will provide best results

*Primary hose applications are intended as a basic guide only. Unicoil products are compatible with oil,air,water and fuel hoses.Additional applications are possible,refer to hose Min and Max O.D.'s to match Unicoil with other hoses not listed here.


insructions

path ok

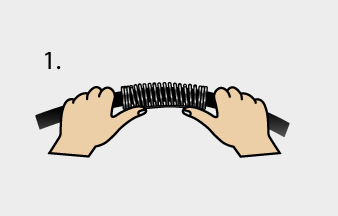

Slide the Unicoil to where the bend is required.Position the spine on the inside of the intended bend.

path ok

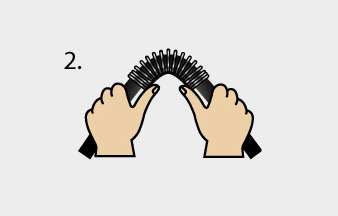

Press and bend the spine untill the required bend angle is achieved.

path ok

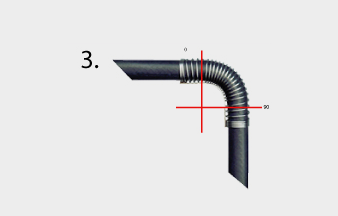

Maximum bend angle is 90 Degrees.

path ok

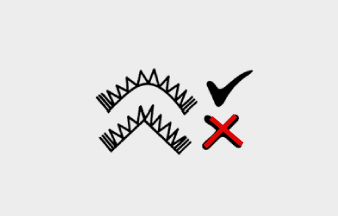

For best results create a gradual bend in the spine and avoid making sharp bend.
